Vacuum Degasser – Advanced Technology for Drilling Mud Gas Elimination
Product Description
The Vacuum Degasser is an essential solids-control device designed to efficiently remove dissolved and entrained gases—such as methane, H₂S, and CO₂—from drilling fluids. By creating a negative-pressure environment, it rapidly separates harmful gases from the mud, stabilizes drilling-fluid properties, and ensures safe and continuous drilling operations.
With a compact structure, high processing capacity, and reliable performance, the Vacuum Degasser is widely used in oil & gas drilling, geothermal drilling, trenchless construction, and other demanding mud-treatment applications. Its robust construction and explosion-proof components make it suitable for harsh and hazardous work environments.
Features & Benefits
✔ Efficient Gas Removal – Quickly eliminates dissolved gases to restore mud density and viscosity.
✔ Stable Drilling Fluid Properties – Prevents gas-cut mud and boosts the efficiency of downstream equipment.
✔ Self-Suction Design – No need for an additional feed pump, simplifying system layout.
✔ High Reliability & Safety – Explosion-proof motor and rugged structure ensure long-term operation in harsh fields.
✔ Automatic Liquid Level Control – Guarantees consistent performance with minimal manual intervention.
✔ Low Noise & Smooth Operation – Designed with dynamic balance technology for stable and quiet performance.
✔ Easy Maintenance – Simple internal design decreases downtime and improves service efficiency.
Technical Specifications
| Model | TRZCQ240 | TRZCQ270 | TRZCQ300 | TRZCQ360 |
| Body Diameter | 700mm | 800mm | 900mm | 1000mm |
| Handling Capacity | 240 m³/h | 270 m³/h | 300 m³/h | 360 m³/h |
| Vacuum Degree | -0.030-0.045Mpa | -0.030-0.050Mpa | -0.030-0.045Mpa | -0.030-0.045Mpa |
| Transmission Ratio | 1.68 | 1.68 | 1.68 | 1.72 |
| Degassing Efficiency | ≥95% | ≥95% | ≥95% | ≥95% |
| Motor Power | 15kW | 22kW | 30kW | 37Kw |
| Vacuum Pump Power | 2.2kW | 3kW | 4kW | 7.5kW |
| Impeller Speed | 860r/min | 870r/min | 876r/min | 880r/min |
| Dimension | 1750*860*1500mm | 2000*1000*1670mm | 2250*1330*1650mm | 2400*1500*1850mm |
| Weight | 1100kg | 1350kg | 1650kg | 1800kg |
Technical Advantages
✔ Negative-Pressure Degassing System – Creates a strong vacuum environment that enhances gas separation efficiency compared to atmospheric degassers.
✔ Self-Priming Capability – The internal vacuum pump draws drilling fluid automatically, allowing flexible installation and reducing equipment cost.
✔ Optimized Rotor Structure – High-speed impeller increases contact area between mud and vacuum chamber, maximizing degassing performance.
✔ Corrosion-Resistant Materials – Key components made from wear- and corrosion-resistant alloys ensure long service life.
✔ Explosion-Proof Motor Options – ATEX/IECEx-certified motors available for hazardous oilfield operations.
✔ High Capacity with Compact Footprint – Ideal for modern rigs where space and efficiency are critical.
Applications
✔ Oil & Gas Drilling Solids Control Systems
✔ Geothermal and Deep Well Drilling
✔ Trenchless Construction (HDD & Tunneling)
✔ Workover & Well Completion Fluids
✔ Industrial Mud Treatment Systems
✔ Any operation requiring removal of dissolved gases from drilling fluids
Advantages & Services
✔ Customizable Models & Specifications – Degasser sizes and capacities tailored based on rig flow and mud properties.
✔ Global Delivery & Full Spare Parts Support – Long-term supply of vacuum pumps, impellers, seals, and control components.
✔ Professional Technical Support – On-site installation, commissioning guidance, and operator training.
✔ Durable Construction & Long Service Life – Engineered for continuous 24/7 operation under field conditions.
✔ Integrated Solids Control Solutions – Compatible with shakers, desanders, desilters, centrifuges, and mud tanks.
Why Drilling Professionals Choose it?
✔ Superior Degassing Efficiency improves mud stability and drilling safety.
✔ Reliable, field-proven design used widely in domestic and international drilling projects.
✔ Self-suction and automatic control reduce system complexity and maintenance.
✔ Built for harsh environments with heavy-duty components and explosion-proof safety.
✔ Excellent service and technical support, ensuring smooth, long-term operation.
About TR SolidsControl
TR SolidsControl is a professional manufacturer of drilling fluid equipment, supplying advanced solids control solutions for oil and gas, trenchless, and geothermal industries worldwide. Our commitment to innovation and quality ensures high-performance products and reliable service.
|
|

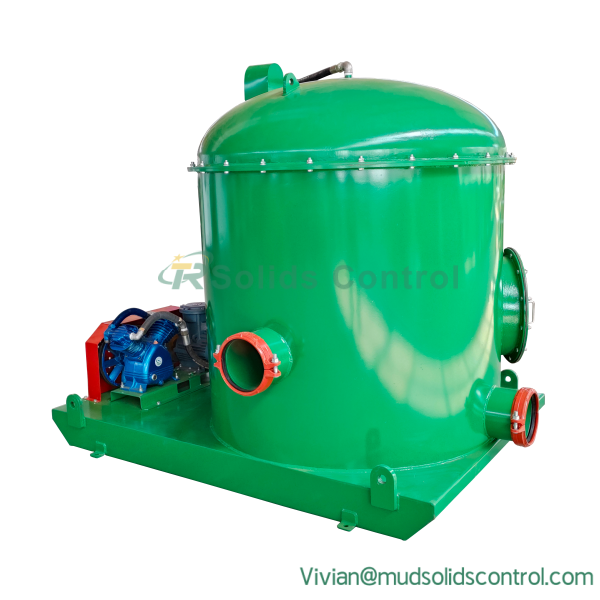

Drilling Fluid Vacuum Degasser – Precision Gas Removal Solution Images
|
