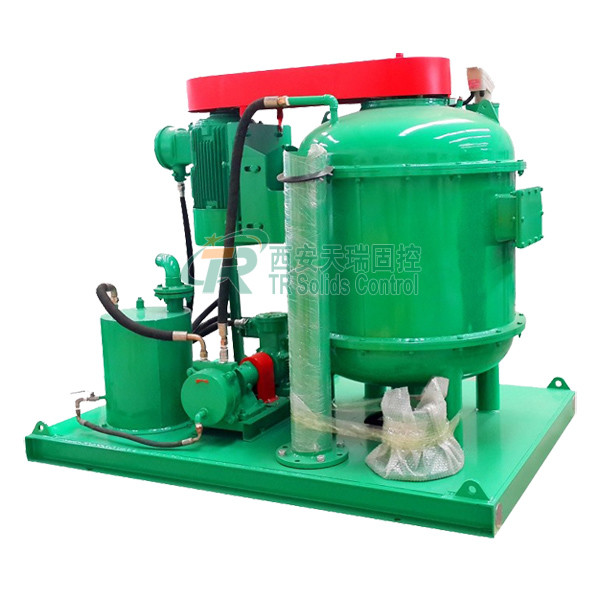

ZCQ240 API Oil Drilling Mud Vacuum Degasser for Solid Control System
Product Introduction
The design and operation of the vacuum degasser are straightforward. This device removes gas through mechanical means rather than relying solely on the density differences between the gas and the mud, which is the principle for gas to be released spontaneously. Our TRZCQ series vacuum degasser is part of the solids control and waste management products that TR provides to the oil and gas drilling industry.
The TRZCQ Vacuum Degassers are capable of meeting the requirements of any application. It is commonly installed following shale shakers. Each degasser can efficiently and effectively eliminate gases from gas - cut mud, thereby guaranteeing that the appropriate mud weight is pumped down the wellbore. By achieving this, degassers can assist in preventing potential blowouts. Different from traditional vacuum degassers, our degasser is an independent unit. It is monitored by a level sensor to prevent over - suction of fluids.
Main Application
TRZCQ series drilling vacuum degasser is used in these industries: Coal Bed Gas Solids Control System, Oil and Gas Drilling, Drilling Waste Management, Water Drilling, Oil Sludge Dewatering Systems, Trenchless HDD & Tunnelling, Oil Mud Seperation, Bored Piling etc. We will provide our clients high quality products with most reasonable price, at the same time we also sincerely offer the high level after sales service for any home or abroad clients.
Advantages of TR Vacuum Degasser
- Belt drive makes it avoid the complexity of the reducing gear, and guarantee the long time working time without trouble.
- Scientific and reasonable design for structure. It can achieve effective separation of gas and liquid, filter out impurities, and ensure exhaust pipe is always clear;
- Vacuum degasser makes mud throw towards barrel wall at a high speed by rotor. Bubbles in the mud are broken thoroughly, making the vacuum degasser have high degassing efficiency up to 95%.
- There is a gas-water separator in vacuum degasser, which can avoid water and gas are discharged at the same time, and also can supply water to the vacuum pump, saving water and environment-friendly.
- Water ring type of vacuum pump work is always at a constant temperature state, suitable for flammable and explosive gas suction.
Technical Parameters of TR Vacuum Degasser
| Model |
TRZCQ240 |
TRZCQ270 |
TRZCQ300 |
TRZCQ360 |
| Body Diameter |
700mm |
800mm |
900mm |
1000mm |
| Capacity |
240 m³/h |
270 m³/h |
300 m³/h |
360 m³/h |
| Vacuum Degree |
-0.030-0.045Mpa |
-0.030-0.050Mpa |
-0.030-0.045Mpa |
-0.030-0.045Mpa |
| Transmission Ratio |
1.68 |
1.68 |
1.68 |
1.72 |
| Degassing Efficiency |
≥95% |
≥95% |
≥95% |
≥95% |
| Motor Power |
15kW |
22kW |
30kW |
37Kw |
| Vacuum Pump Power |
2.2kW |
3kW |
4kW |
7.5kW |
| Impeller Speed |
860r/min |
870r/min |
876r/min |
880r/min |
| Dimension |
1750×860×1500mm |
2000×1000×1670mm |
2250×1330×1650mm |
2400×1500×1850mm |
| Weight |
1100kg |
1350kg |
1650kg |
1800kg |
Operational Theory
TR Vacuum degasser utilize negative pressure by vacuum pump to withdraw entrained gases from the mud. In order for this to work, mud is pumped through a venturi, which develops a negative pressure in the vessel by vacuum pump, thus sucking mud into the unit. The choice between horizontally- or vertically-mounted units is typically based on the footprint requirements of the specific rig.
Competitive Advantages
1. We offer high quality products at competitive price.
2. Shortest delivery time.
3. Flexible payment terms.
4. Timely after-sale service.
5. Most of our equipment can be replaceable with international brands.
6. Our products have been exported to Argentina, Egypt, US, Australia, Romania, Pakistan, Dubai, Abu Dhabi, Iran, India, Indonesia, Vietnam, Malaysia and many other countries.
Company Tenet
Customer's satisfaction is the highest pursuit of TR Solids Control.
